The V810 is a modular full-bridge switch-mode rectifier with a 3-phase input and floated output poles, the latest addition to our Vega lineup. It can output up to 192 kW in one enclosure with up to eight modules stacked vertically, working in parallel for enhanced reliability and easier service from the front.

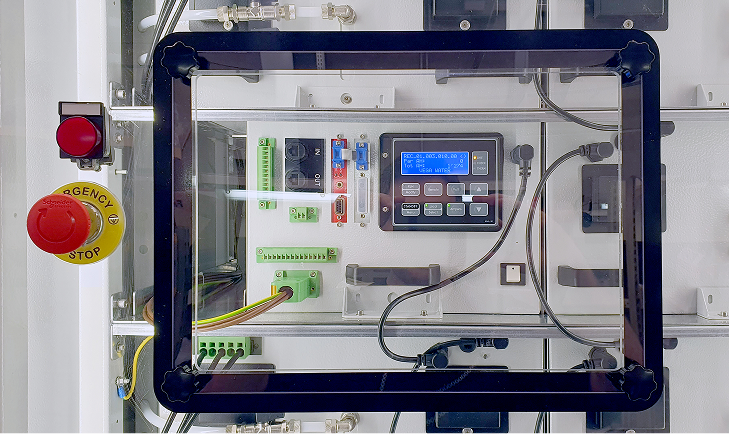

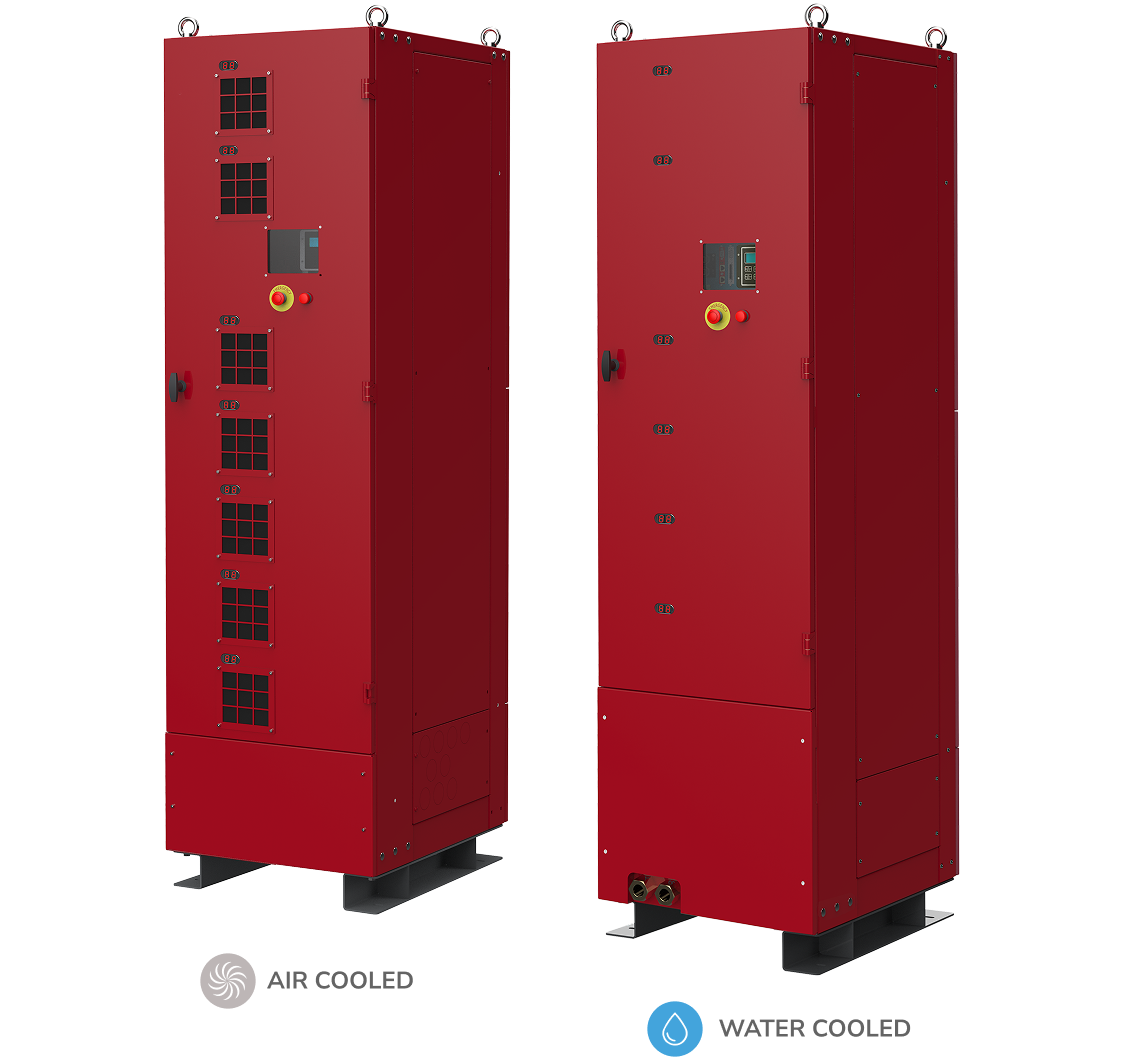

However, they can combine to sum their power for the most power-demanding applications. It can be air- or water-cooled with an optional heat exchanger to isolate the internal loop from the customer circuit and regulate the internal temperature to prevent condensation. Manual or automatic control is possible, which allows programming waveforms, monitoring Ah, and more. A bipolar synchronized rectification enables each module to reverse its output and produce pulsed waveforms with excellent efficiency.
